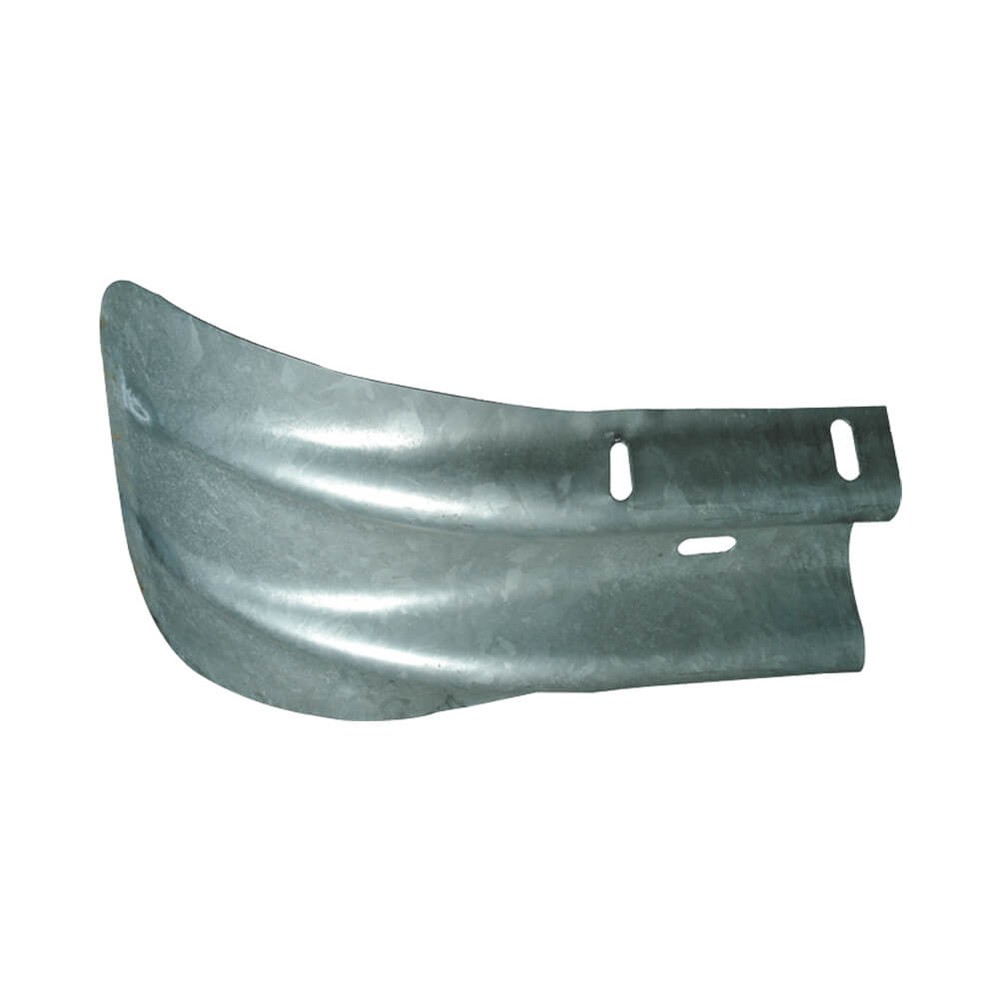

Galvanised Armco Barrier Fishtail End – Type A

The Armco Barrier Fishtail End provides a safe termination point for the end of an Armco crash barrier run. Its curved, sweeping profile deflects vehicle contact away from the exposed edge of the barrier beam, reducing the risk of a vehicle catching the end and loading the barrier from the side rather than the face. Finished with hot-dip galvanising for corrosion resistance, it’s built for long-term outdoor and indoor use.

Key Specifications

• Length: 700mm
• Type A — adds 392mm from the end post
• Finish: Galvanised
• Weight: 5kg

What It’s Used For

• Terminating Armco crash barrier runs safely
• Warehouses, distribution centres and industrial sites
• Car parks and vehicle loading areas
• Anywhere an exposed barrier end presents a risk to vehicles or pedestrians

Why a Fishtail End Matters

An unfinished barrier end leaves a sharp, exposed edge that a vehicle can catch side-on, which can cause more damage than a face-on impact with the barrier itself. A fishtail end sweeps the termination back and away from the direction of traffic, so any contact deflects the vehicle rather than snagging it.

Installation

This fishtail end fits standard Armco barrier beams and is fixed using lap bolts (available separately). It’s compatible with new barrier installations and can be retrofitted to existing runs.

Related Products

Complete your barrier system with:

• Armco Barrier Lap Bolts & Nuts M16x35mm →
• Armco Barrier Rubber End Sheath →
  (link these once you’ve got their KB Packaging product URLs live)

Armco Barrier Fishtail End FAQs

What is an Armco Barrier Fishtail End used for?

It provides a safe termination to an Armco barrier run, deflecting vehicle contact away from the exposed end of the beam and reducing the risk of injury or vehicle damage.

What does “Type A” mean?

Type A refers to the fishtail end configuration that adds 392mm of length from the end post, distinguishing it from other fishtail end types with different post offsets.

Is this suitable for outdoor use?

Yes — the galvanised finish provides strong corrosion resistance, making it suitable for both outdoor and indoor barrier installations.

Can it be fitted to an existing barrier?

Yes, it’s compatible with standard Armco barrier beams and can be retrofitted to existing installations, not just new builds.
