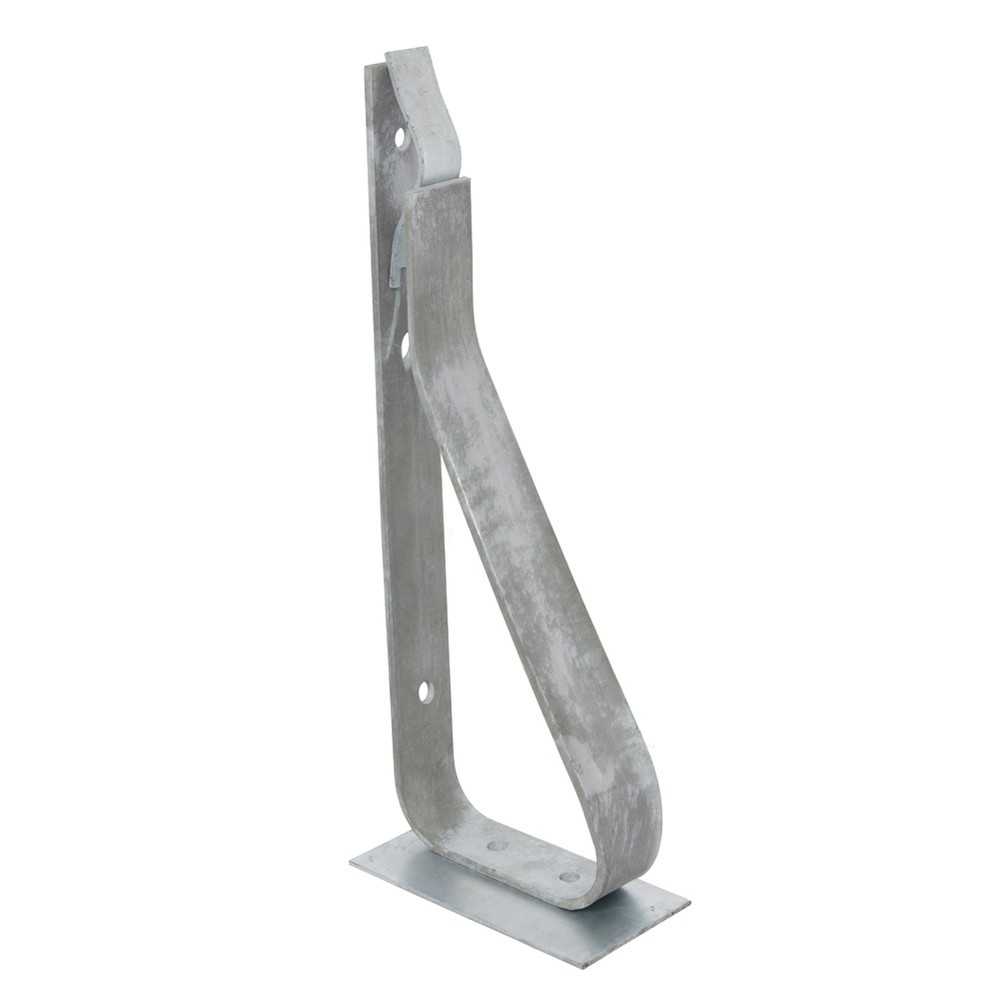

Galvanised 760mm Armco Barrier Post designed for use with double-beam Armco crash barrier systems. Featuring a robust steel construction and 298mm x 200mm base plate, this bolt-down post provides a secure support for Armco barriers used to protect warehouses, factories, car parks, loading areas, machinery and other vulnerable infrastructure from vehicle impacts.
Product code 120102. Supplied as an individual post. M16 x 50mm Armco post bolts and nuts are required for installation and are available separately.
£55.80 Ex VAT
14 day returns
Next Day Delivery Available!*
Most orders delivered next business day
Contact us for trade or high-volume pricing
| Dimensions | 1.00 × 1.00 × 1.00 cm |
|---|
The Galvanised Armco Barrier Post 760mm – Double Beam is a robust steel support post designed for use with double-beam Armco crash barrier systems.
With an overall height of 760mm, the bolt-down post provides a secure support for two barrier beams and is suitable for protecting warehouses, factories, machinery, racking, loading areas, walls and other vulnerable infrastructure from vehicle impacts.
The post features a galvanised finish and a 298mm × 200mm base plate, providing a substantial mounting footprint when installed onto a suitable surface.
Armco crash barriers are commonly used in areas where forklifts, pallet trucks and other vehicles operate close to fixed infrastructure.
This post can be used to create protective barriers around:
The modular system allows posts and beams to be arranged around the particular area requiring protection.
The galvanised finish provides corrosion protection and makes the post suitable for a wide range of commercial and industrial environments.
It can be used inside warehouses and factories as well as in suitable external applications where protection from vehicle movement is required.
This post is designed specifically for a two-beam configuration.
A complete installation can be built using compatible barrier beams, posts, end sections, corners and fixing components. The exact number of posts and other components required will depend on the length and layout of the proposed barrier.
For installation, the manufacturer’s specification calls for 2 × M16 × 50mm Armco Barrier Post Bolts & Nuts per post.
| Specification | Details |
|---|---|
| Product | Armco Barrier Post |
| Product Code | 120102 |
| Overall Height | 760mm |
| System | Double Beam |
| Material | Steel |
| Finish | Galvanised |
| Base Plate | 298mm × 200mm |
| Base Fixing Holes | Ø28mm |
| Weight | 14kg |
| Sold As | Each |
This post is suitable for creating protective barrier systems in:
It is particularly useful where machinery, buildings, racking or other assets need additional physical protection from vehicle movements.
The 760mm double-beam post forms one part of a modular barrier system. Depending on the installation, you may also require:
KB Packaging supplies a range of Armco crash barrier components, allowing you to build a complete protection system around your warehouse or industrial site.
